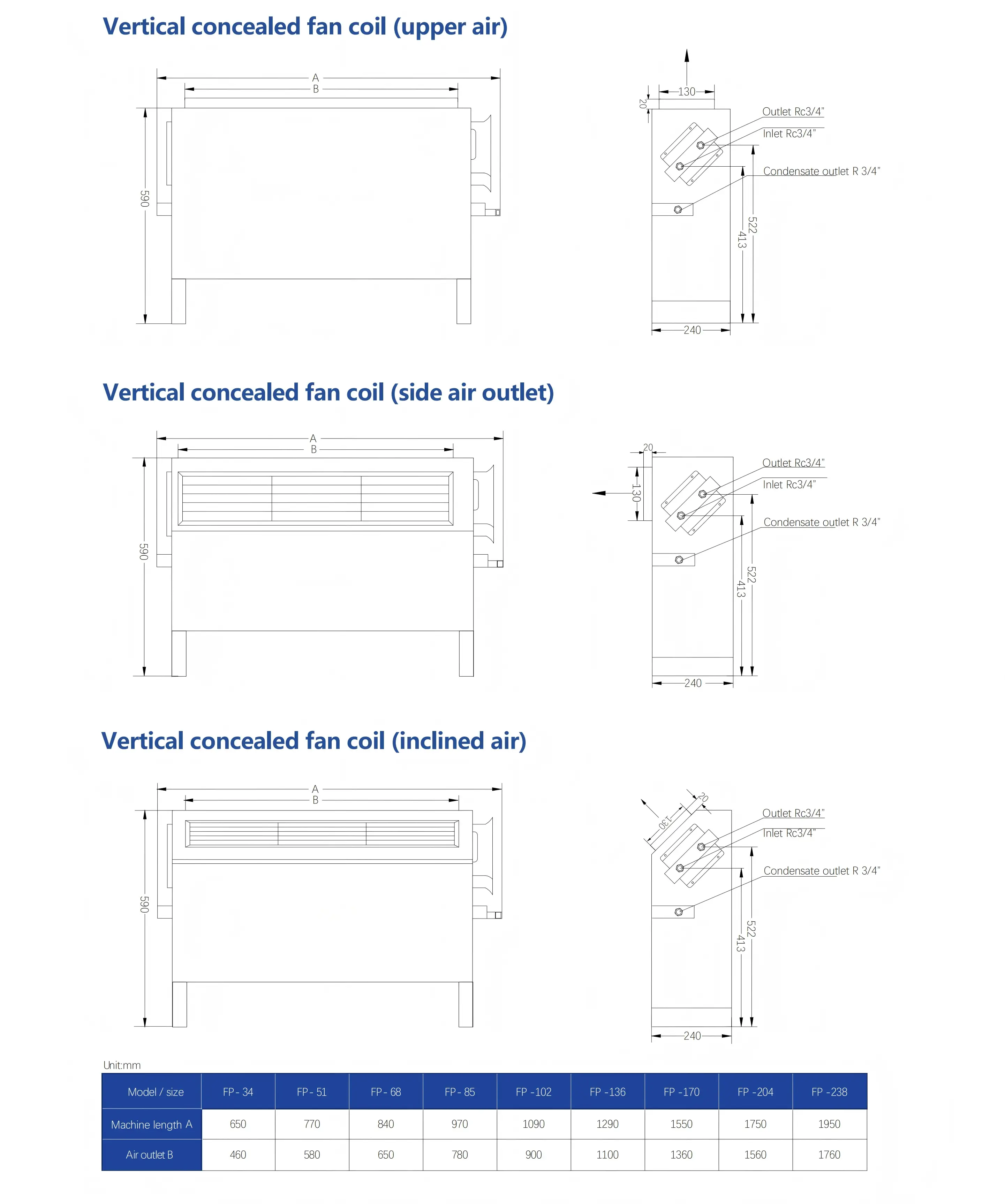

The Vertical Concealed Fan Coil Unit is designed for vertical installation beneath windowsills or within walls, preserving ceiling height with an ultra-slim profile. Discharge direction options include upward, forward, or angled. Available in low and high static pressure configurations, with the high-ESP version supporting longer duct runs.
Suitable for high-ceiling spaces where suspended ceilings are impractical or top space conservation is desired. Typical applications include conference rooms, stadiums, halls, and other public areas.
The fan continuously draws indoor air through the internal heat exchanger coil. Chilled or hot water from the central AC chiller circulates through the coil. In summer, air is cooled by chilled water; in winter, heated by hot water. Treated air is returned to the room to maintain stable temperature.
