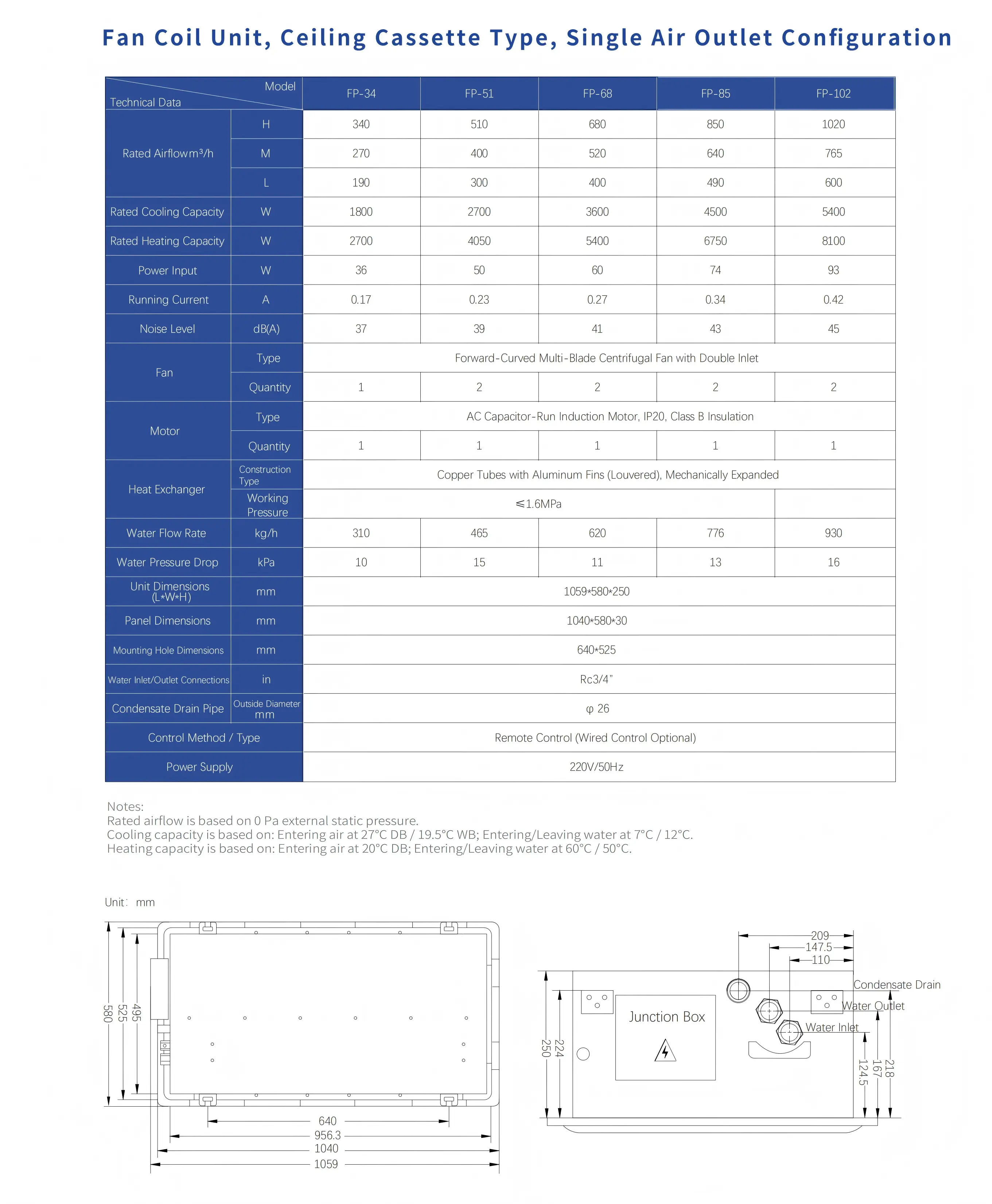

The 1-Way Cassette Fan Coil Unit is recessed into the ceiling with a single-side louver as the air outlet and the remaining surfaces/bottom grille as the return air inlet, delivering directional airflow from one side only. Ideal for narrow spaces, corner rooms, and shop partitions where directed airflow without direct blowing on occupants is preferred.
Industrial and civil buildings including textile/garment, machinery, metallurgy/chemical, electronics/power, and medical/pharmaceutical applications; venues such as broadcast halls, malls, entertainment centers, theaters, and stadiums — particularly suited for narrow corridors and corner areas.
The chiller or heat pump delivers chilled/hot water through supply piping and motorized valve to the 1-way cassette heat exchanger, with return water flowing back to the main unit in a closed-loop water circuit. The fan draws indoor air from the return zone, passes it through the heat exchanger, and discharges conditioned air from a single direction. Condensate drains automatically for continuous temperature regulation.
