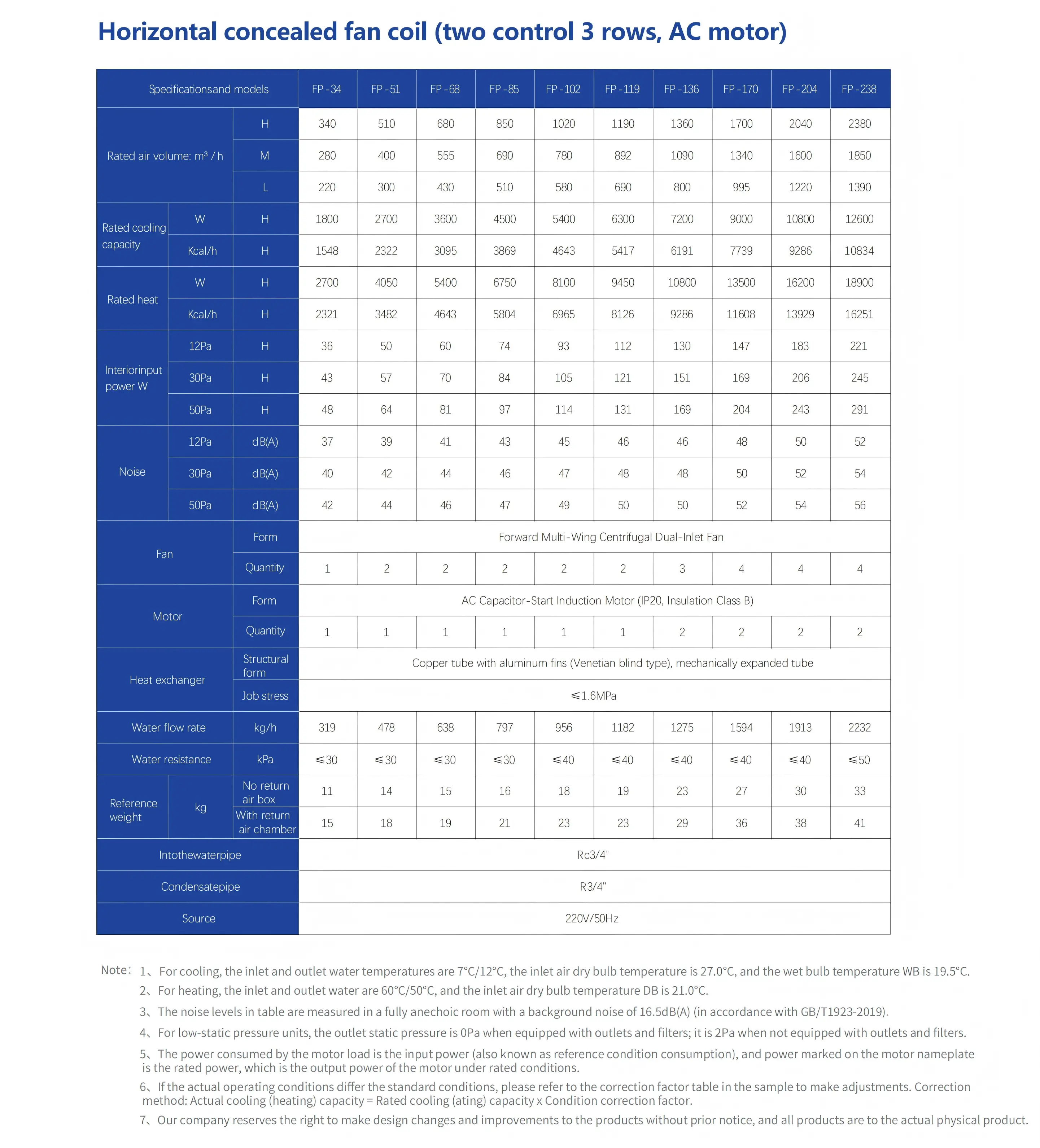

The Horizontal Concealed Fan Coil Unit is a terminal device for central AC systems, concealed within the ceiling space. It consists of a fan and coil with optional air filtration and purification accessories. Airflow range 340-2380m³/h, external static pressure 12/30/50Pa. As a central AC terminal unit, its quality directly determines indoor comfort.
Widely used where aesthetics are paramount: office buildings, hotel guestrooms, shopping malls, hospitals, and other commercial/public buildings; marine vessels including passenger ships and cruise ships; explosion-proof environments such as chemical plants and laboratories.
The fan forces indoor air through the internal heat exchanger coil containing chilled or hot water for heat exchange. Cooled or heated air is returned to the room. In summer, chilled water provides cooling and dehumidification; in winter, hot water provides heating — continuously circulating to maintain stable room temperature.
